400VSQUARING MACHINE WITH SLIDING TABLE FOR WOOD HOLZMANN FKS315V1200

SKU : 886.FKS315V1200_400V

HOLZMANN MASCHINEN

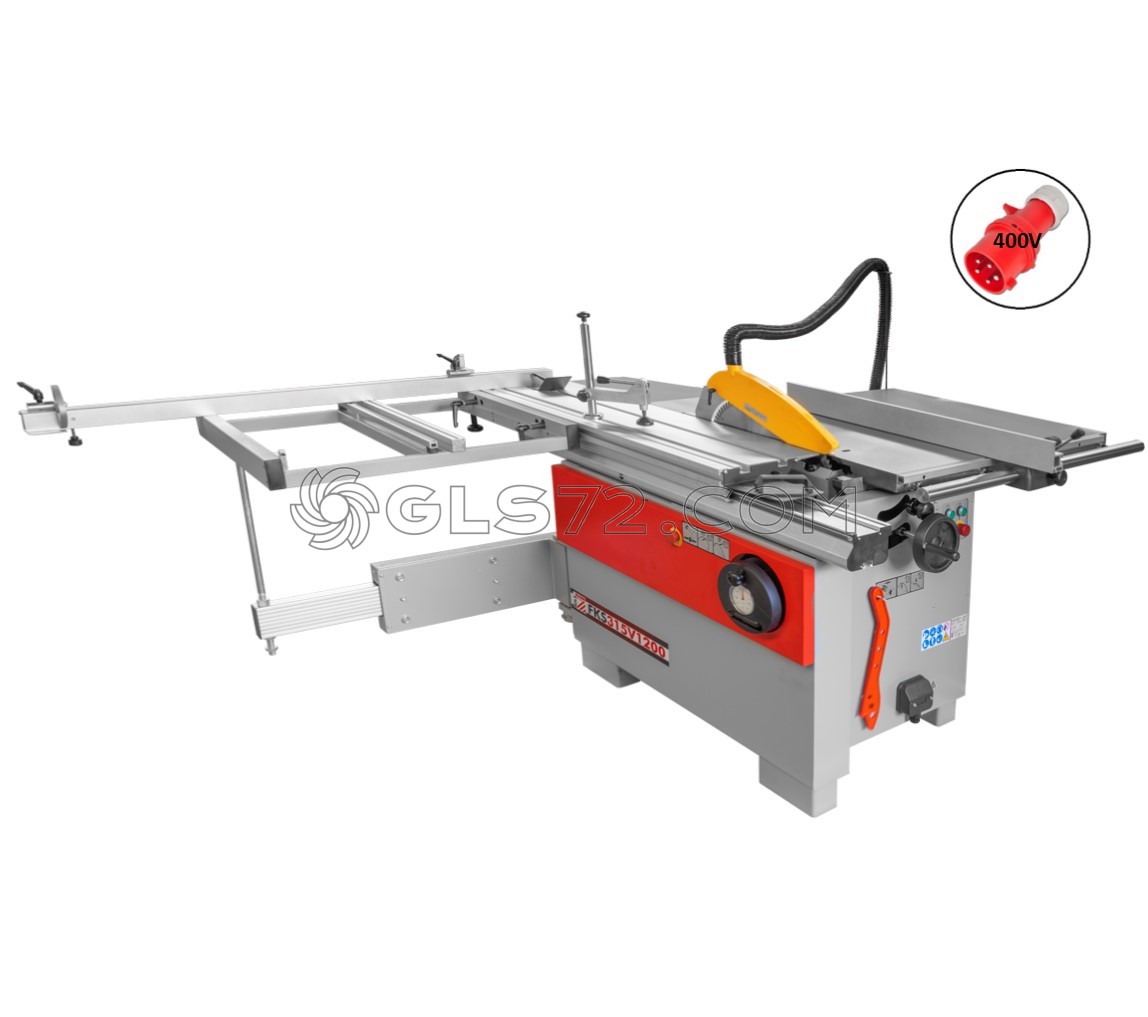

400V SQUARING MACHINE WITH SLIDING TABLE FOR WOOD HOLZMANN FKS315V1200

The squaring machine with circular saw and sliding table FKS315V1200 400V has an aluminum sliding table and stabilizing table ideal for machining pieces and cutting very large panels.
It has a central control panel mounted on the lower part of the machine and the height and inclination of the blade is adjusted by means of the special flywheel mounted on the machine.
The widening and extension of the table allow comfortable work, as well as being made of aluminum to facilitate the sliding of the heavier boards.
TECHNICAL DETAILS

ENGINE DATA

S1 motor power in W 3000
Voltage 400V / 3 / 50Hz
Overall dimensions

Table dimensions in mm 955x400
Table height in mm 900
Table extension in mm 810x660
Sliding table format in mm 1200x360
PERFORMANCE OF THE CUT

cutting height max 90 ° in mm 100
cutting height max 45 ° in mm 70
Cutting width at the rip fence in mm 990
PROCESSING AND CUTS

Blade (/ bore) in mm 250-315 (/ 30)
Saw blade speed in min-1 4300
Scoring blade in mm 120 (/ 20)
By marking the speed of the saw blade in min-1 8530
Rotation range of the saw blade 0-45 °
Engine power score in W 750
VOLUME AND VIBRATIONS:

Sound power level in dB (A) 100
Sound pressure level in dB (A) 85.7
WEIGHT:

Gross weight in kg 449
Net weight in kg 389
DIMENSIONS FOR SHIPPING:

Packaging width in mm 990
Packaging length in mm 1.310
Packaging height in mm 1.085
ACCESSORIES:

Saw blade (ø 315mm)
Saw blade (ø120mm)
