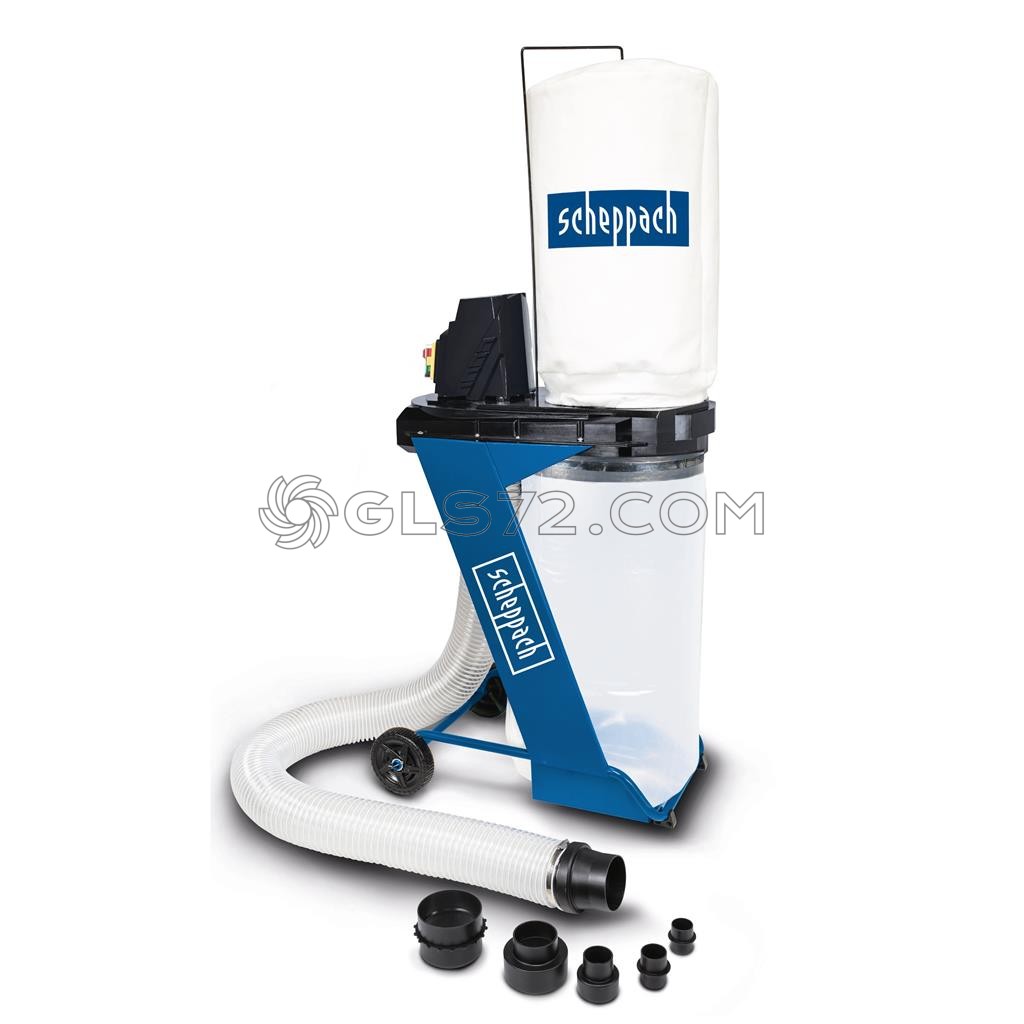

DUST EXTRACTOR COLLECTOR CHIPPINGS WOOD SAWDUST 230V 550W SCHEPPACH DC500
A hose diameter of 100 mm and a six-piece adapter set ensure that the DC500 extraction system from scheppach can be connected to many different machines.
With an extraction power of 1150 m³/h, it reliably sucks large amounts of chips into the 75-litre collection bag.
Thus the workshop remains virtually dust-free when sawing, grinding/sanding and planning.
• Flexible extraction hose of 2 metres with a connection hose diameter of 100 mm
• Incl. a six-piece adapter set for all small devices
• Robust metal frame with a bracket for hanging the filter bag
• A large collection bag with 75 litres minimises emptying
• Designed for large amounts of dust and chips
• Easy to transport thanks to wheel kit
Technical data
Dimensions L x W x H 650 x 446 x 1430 mm
Suction connector Ø 100 mm
Hose length 2000 mm
Air capacity 1150 m³/h
Partial vacuum 900 Pa
Filter area ca. 1m²
Filling capacity 75 L
Motor 230 V~
Input 550 W
Weight net / gross 15 / 16 kg
Packaging dimensions 750 x 460 x 420 mm
