230V HYDRAULIC LOG SPLITTER ELECTRIC WOOD TIMBER CUTTER 7 TON SCHEPPACH HL760L

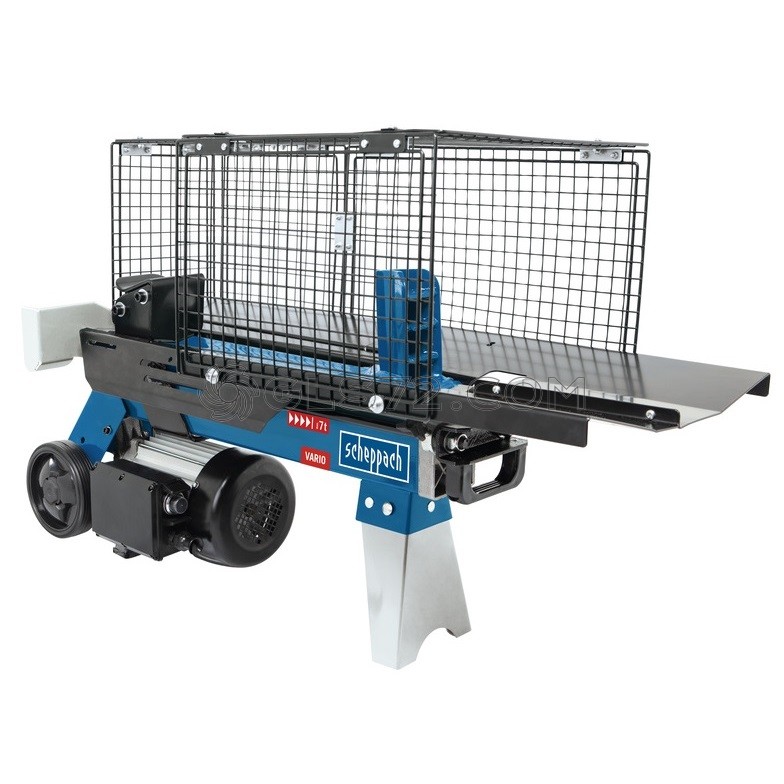

With a splitting force of 7 tonnes, the scheppach HL760L horizontal log splitter splits fi rewood with lengths of up to 52 cm into fi re-sized logs.
Two-handed operation and a cover in the splitting area provide optimised safety, while the stable splitting blade takes care of the hardest work when splitting wood.
The transport wheels make the horizontal splitter easy to transport and mobile.
• Splits up to 100 pieces of wood per hour
• Splits stored and fresh wood effortlessly
• Splitting force: 7 tonnes
• Max. up to 52 cm, Min. 25cm
• wood length, up to 25 cm diameter
• Hydraulic cylinder with automatic return
• Warp-resistant, powder-coated steel structure
• Stable splitting blade
• Powerful motor of 2200 W
• Freely-adjustable splitting stroke
• Optimised safety thanks to two-handed operation
• Low-maintenance machine that does not require much space
• Safety cover in the splitting area
• Tray table for logs
• Safe and quiet operation
Technical data
Dimensions L x W x H 1160 x 425 x 610 mm
Splitting power max. 7 t
Wood-Ø min. – max. 55 – 250 mm
Wood length max. 520 mm
Speed forward 31mm/s
Speed backward 3mm/s
Motor 220 – 240 V~ / 50 Hz
Input 2200 W
Weight net / gross 59 / 63 kg
Packaging dimensions 950 x 325 x 510 mm
